How to Connect

1

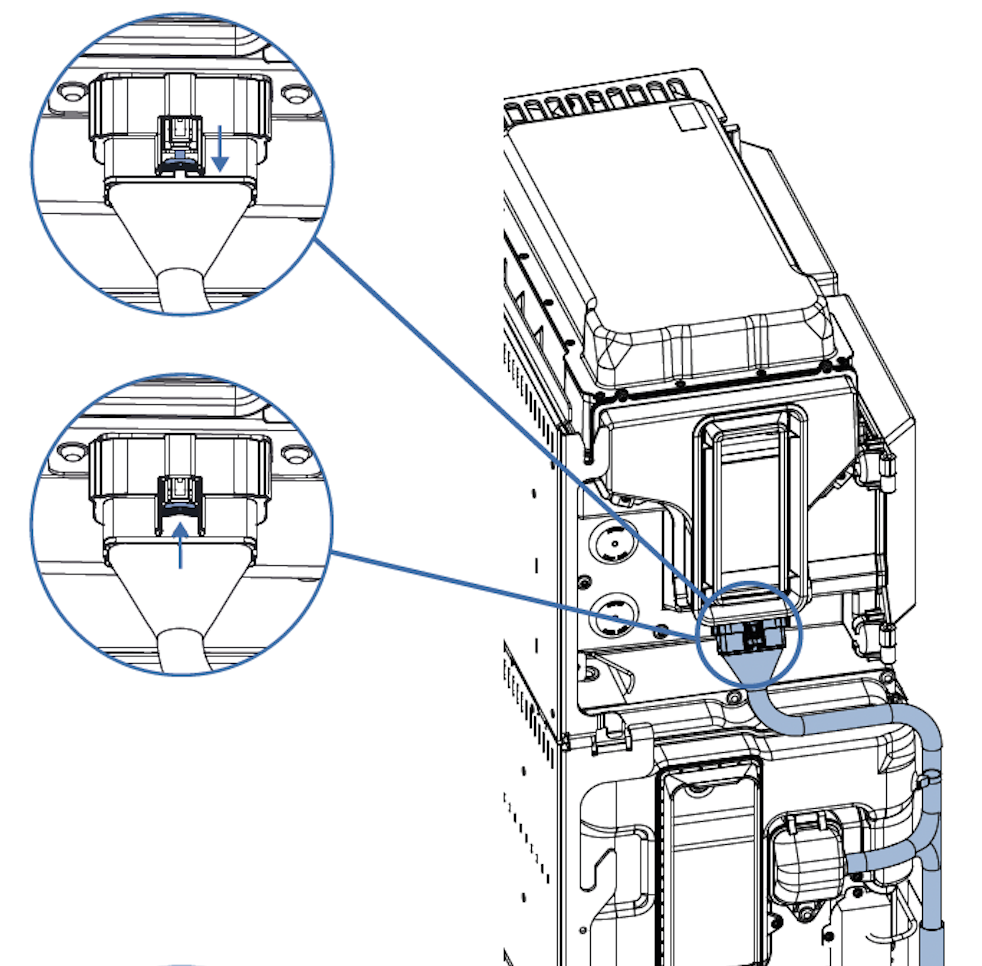

Insert connector

Connect the trunk harness into the inverter, ensuring the white tab is down (away from the inverter).
2

Lock connector

Push the white tab up until you hear a click, indicating the connector is fully seated and locked in.
If the tab doesn’t move up, push the connector in deeper and try again.
Connect Inverter

​
How to Disconnect

  1. Slide the white tab down to unlock it
  2. Press the center of the square latch and pull the cable away
