Step 1: PV to Inverter

Land PV in the Inverter DC terminals.

​
Step 2: Inverter to Home

Connect the AC output from the inverter to your electrical panel.

​

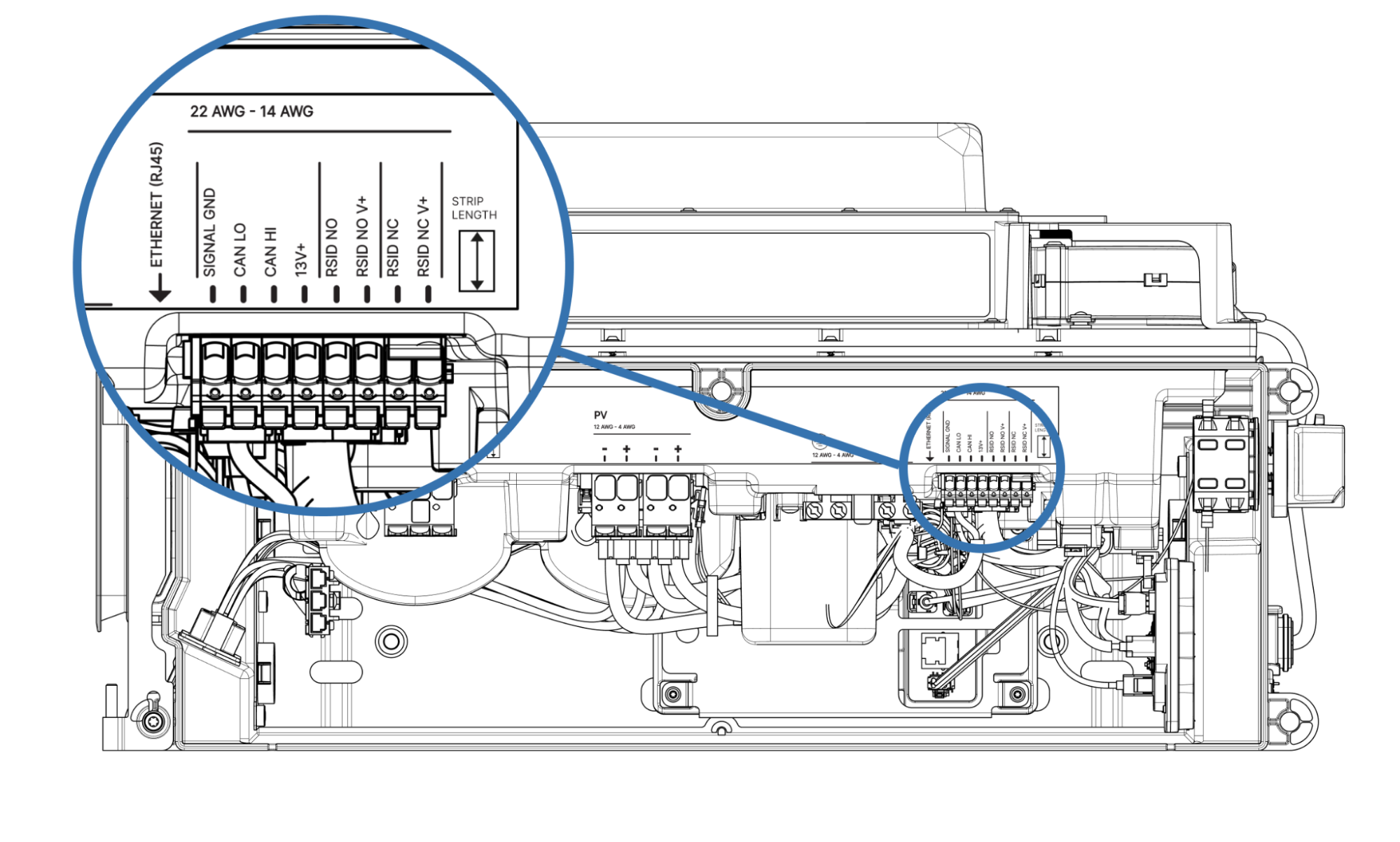

Step 3: Low Voltage Wiring

Complete low voltage connections for communication and monitoring.
Auxiliary Rapid Shutdown Initiation Device (RSID) can be optionally installed when desired or required by AHJs.
Terminate the CAN communication cable’s drain wire (shielding conductor) at only one end — either the inverter or the Bridge.

​
Step 4: Closing the Front Door

1

Connect door capacitor

2

Screw the front door closed.

Leave the wiring compartment door open during commissioning for easier troubleshooting access. Secure the door after the commissioning job report has been sucessfully submitted.
