Step 1: Secure Lifting Tool

Secure the lifting tool to the Battery Block.

​

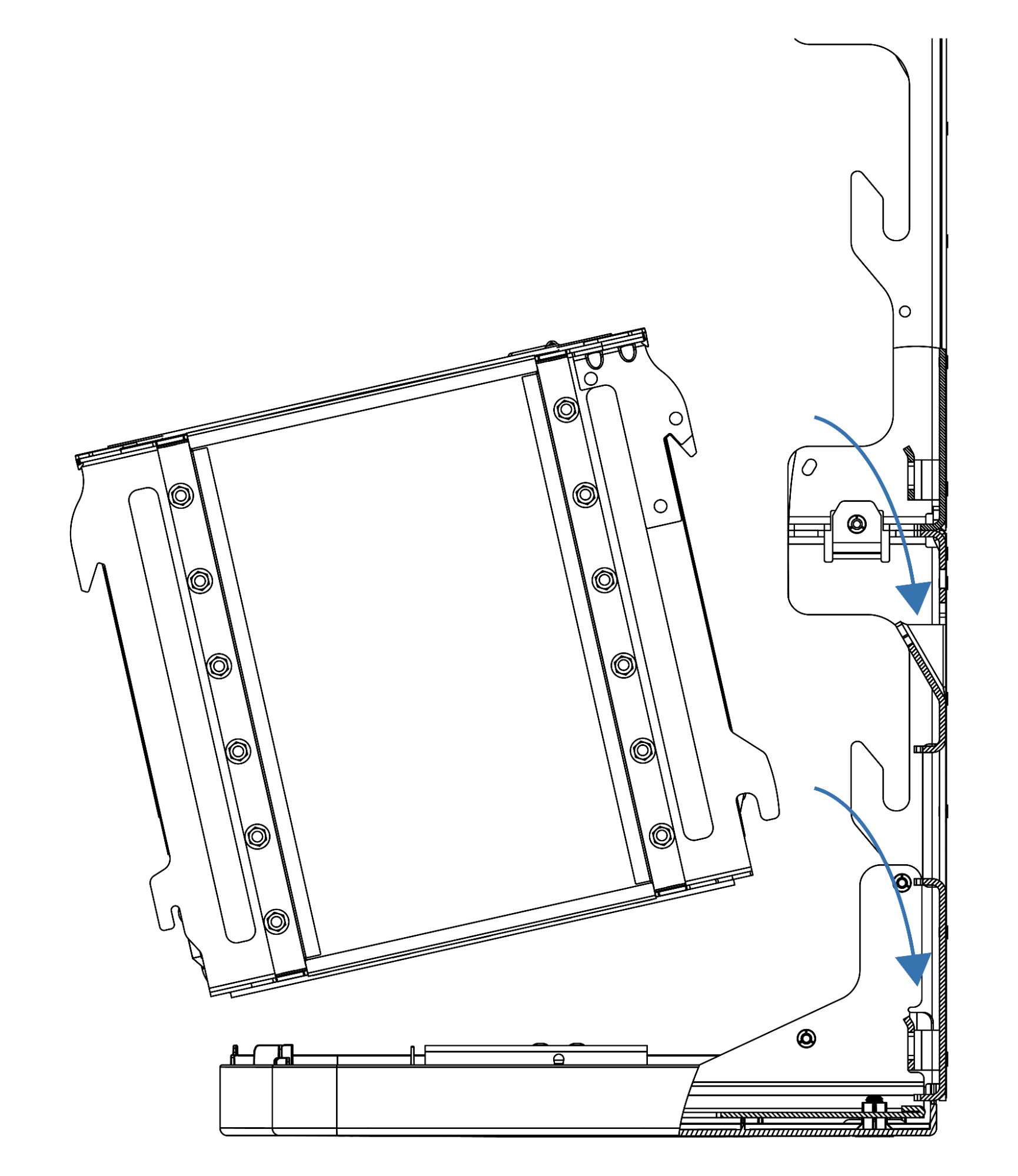

Step 2: Mount Battery Block

With a partner, use the lifting tool to slightly tilt the battery to engage the bracket clips, starting from the bottom battery and working up.

​

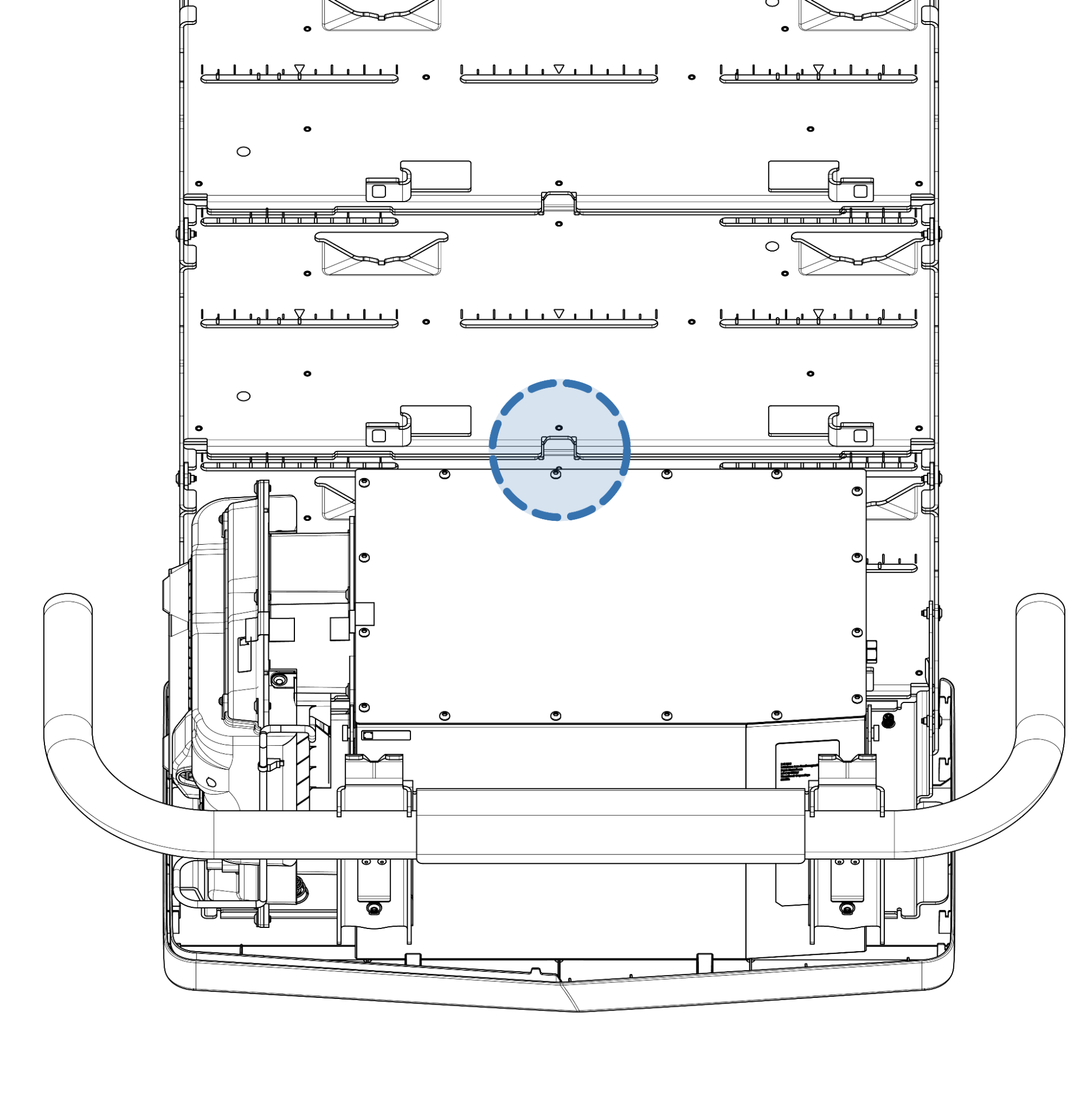

Step 3: Align and Secure

Confirm battery block aligns with the wall bracket center. Push down to remove the lifting tool. Repeat for each Battery Block.

​
Step 4: Mount Inverter

Mount the Inverter onto the wall bracket by tilting slightly to seat it on the 4 hooks.
No lifting tool needed. Ok to grab anywhere on the device.
LFP and NMC battery blocks use the same wall brackets and covers but cannot be mixed behind the same inverter. Contact Lunar for NMC battery blocks to service or expand existing sites.
Always work from the bottom battery block up to the top. Do not attempt to mount or dismount battery block if there are blocks above it.
