Step 1: Install Bottom Bracket

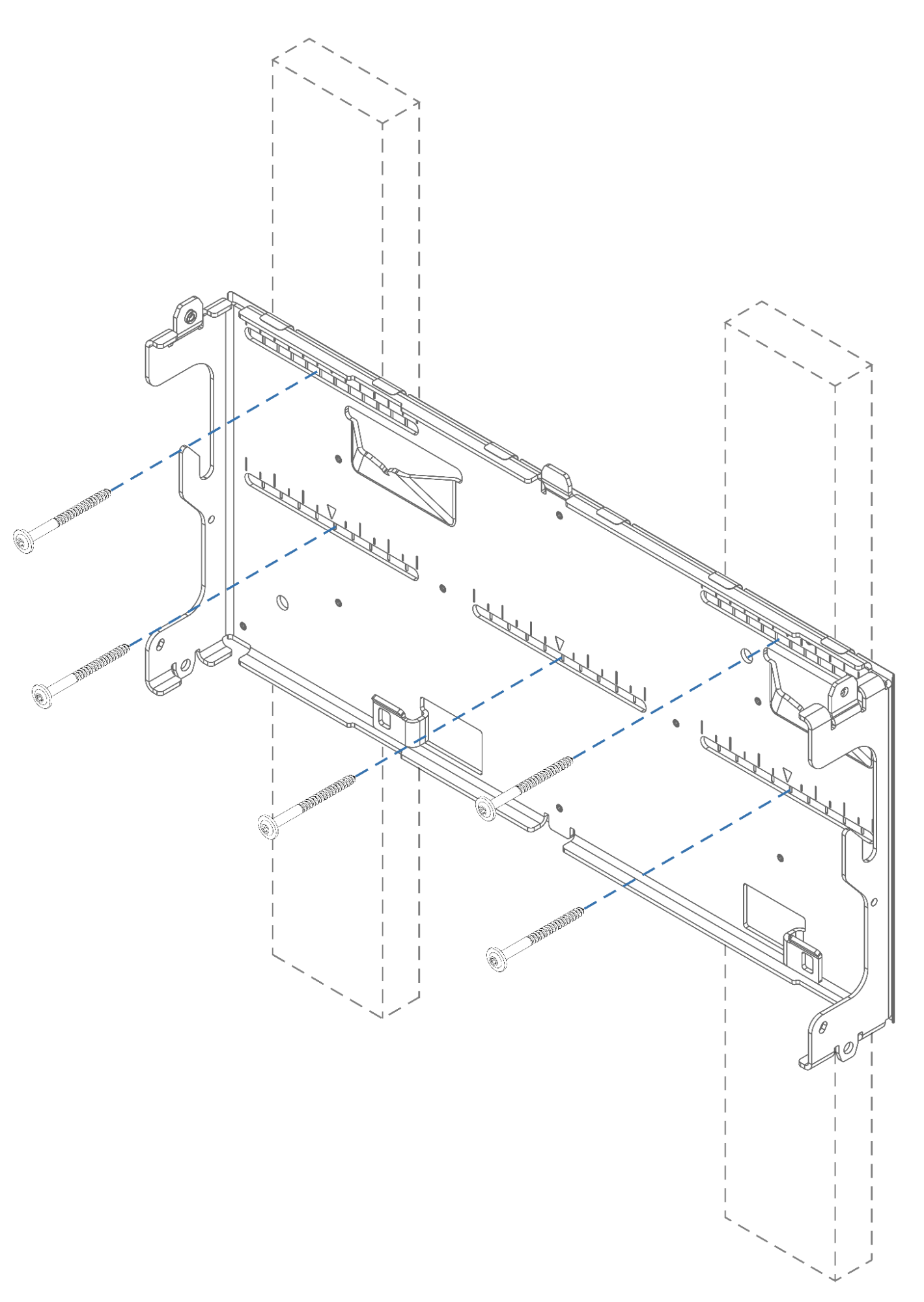

Screw the bottom DC ESS unit bracket to wall studs using two ¼” lag screws with 2” embedment. See available attachment points below.
Step 2a: Attach Bottom Plate
Attach the bottom plate to the first battery bracket with 4 x T25 fasteners (5.0 N-m ±10% torque) from the Hardware Kit.
Step 2b: Level Bottom Plate (Floor Mount)

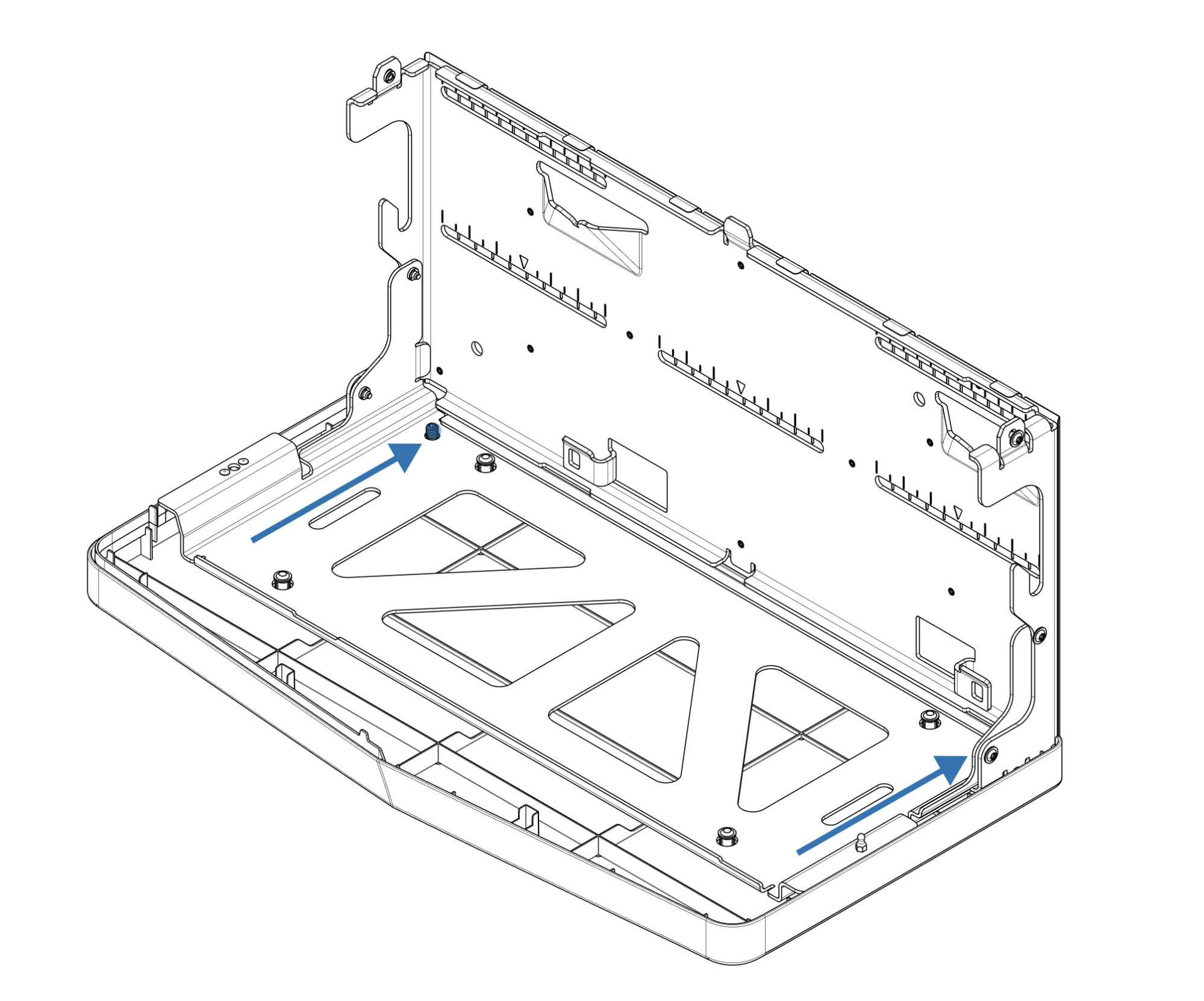

For floor mount only, adjust leveling feet to engage with the level concrete floor.
Step 3a: Install Additional Brackets
Seat and align the next battery bracket on top. Attach it to wall studs with two ¼” lag screws with at least 2” embedment, pressing down to prevent gaps. Repeat for remaining DC ESS unit brackets.
Step 3b: Secure Brackets (Floor Mount)

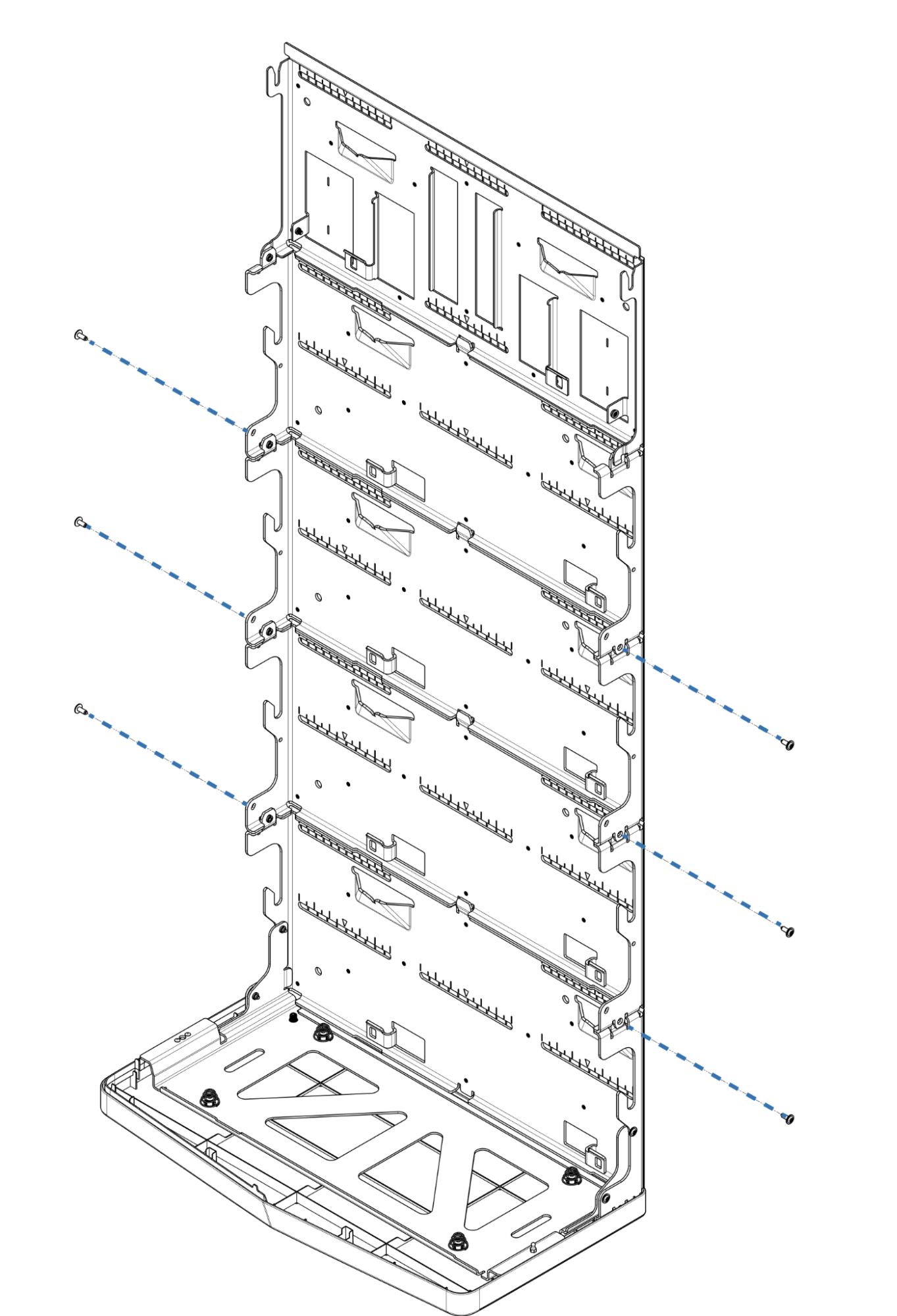

For floor mount only, secure brackets together using the provided T25 fasteners.
Step 4: Install Inverter Bracket

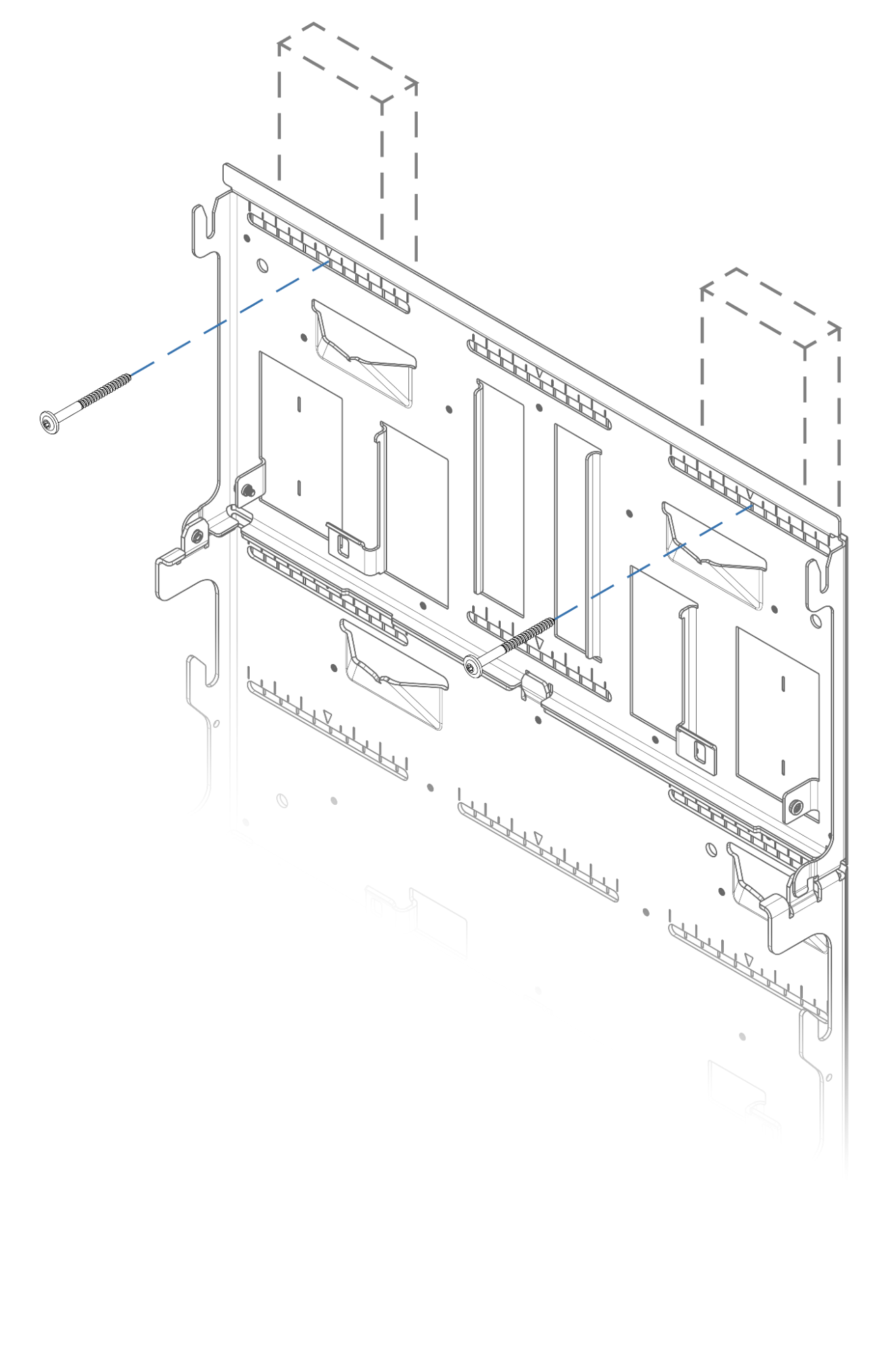

Install the Inverter Bracket on top. Seat it on the battery bracket and screw it into the wall.
