| Minimum Wall Space | 28.7 in x 16.1 in wide (72.7 x 40.8 cm) |

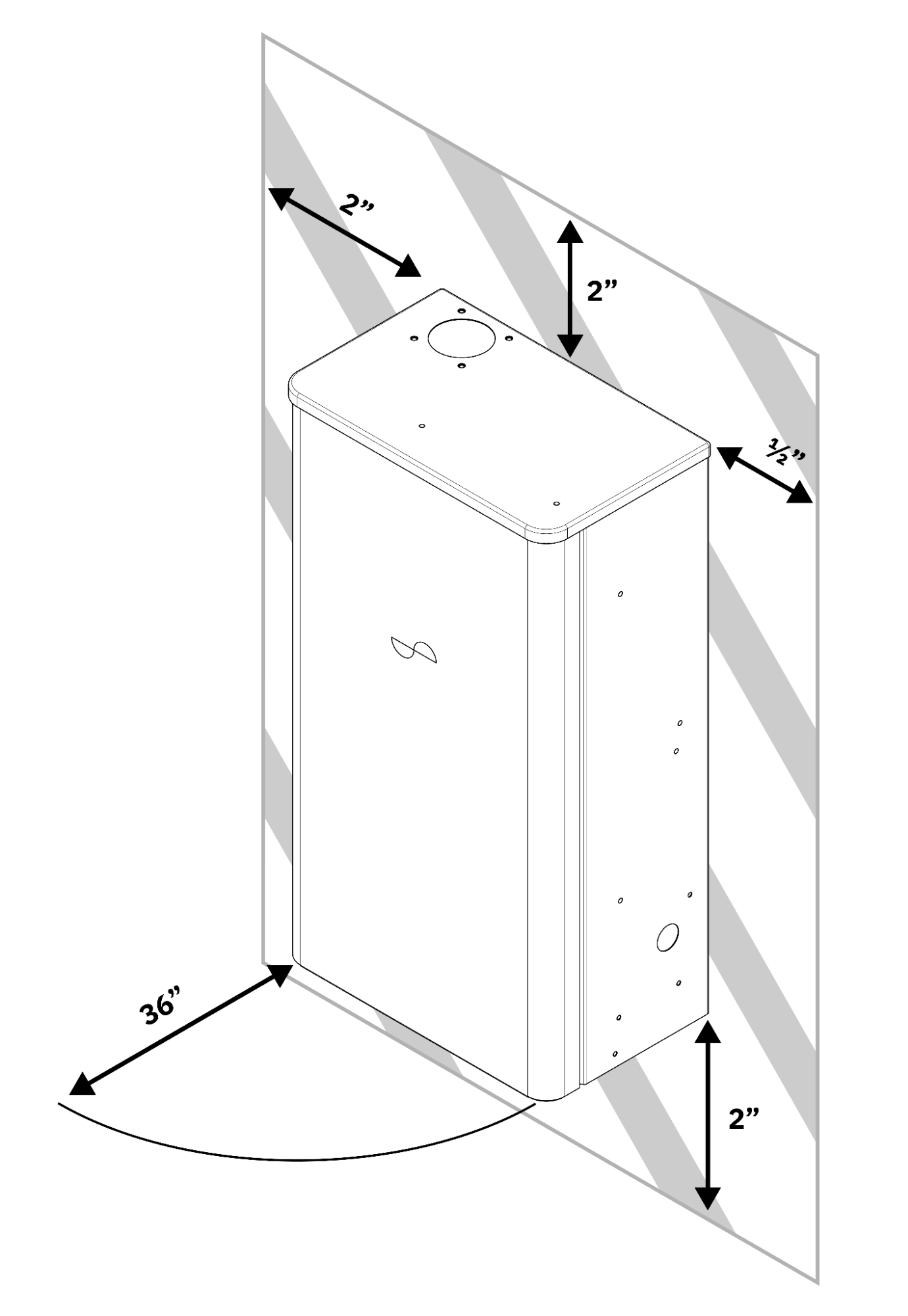

| Minimum Clearance on Left Side | 2 in (5cm) for 90° door open 8.3 in (21cm) for 180° door open |
| Minimum Clearance on Right Side | 0.5 in (1.25cm) |
| Minimum Clearance Above or Below | 2 in (5cm) |
| Minimum Space in Front of Bridge | Abide by local code required clearances. |
| Maximum Height above ground | 73.5 incs (187cm) |
| Maximum Deviation from Level | Side-to-side: +/– 5° Back-to-front: +/– 5° |
| Maximum Distance to ESS | 95 ft (29.5 m) |
