| Entry Location | Description |
|---|---|

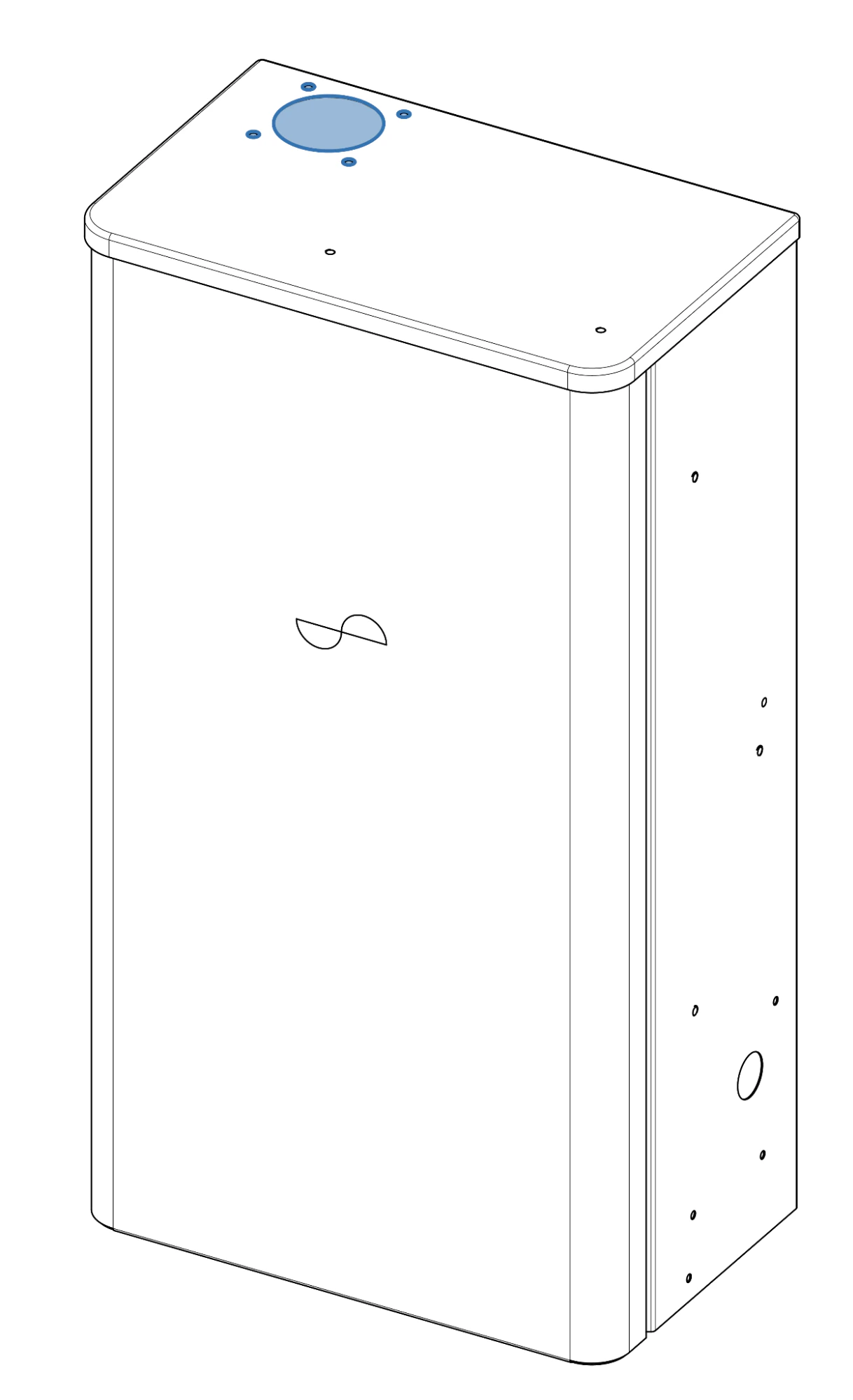

| Top | Supports NEMA 4X A-series 2” conduit hubs (sold separately). |

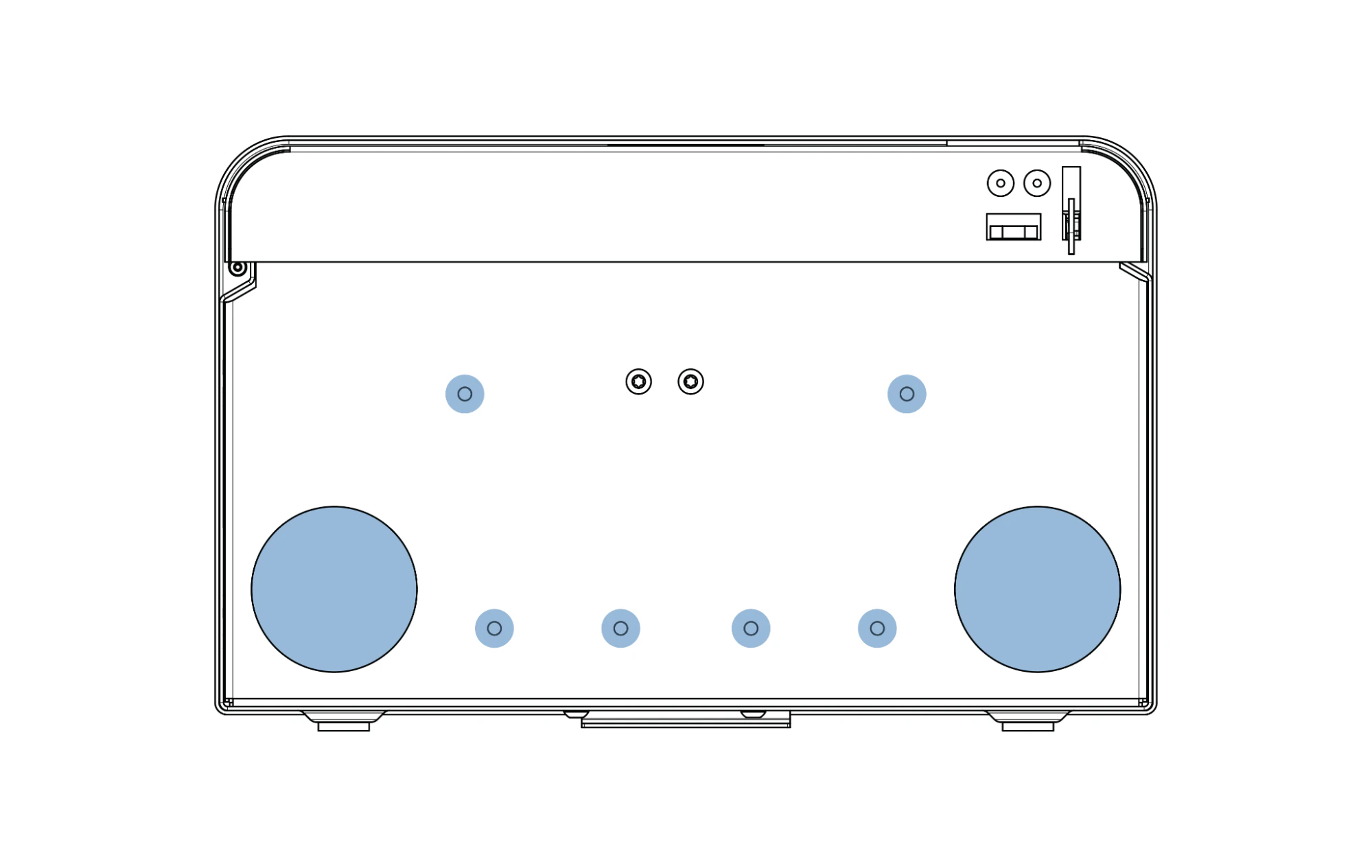

| Bottom, Sides, Back | Dimples for up to 1” field-drilled holes; up to 2” knockouts in select locations. |

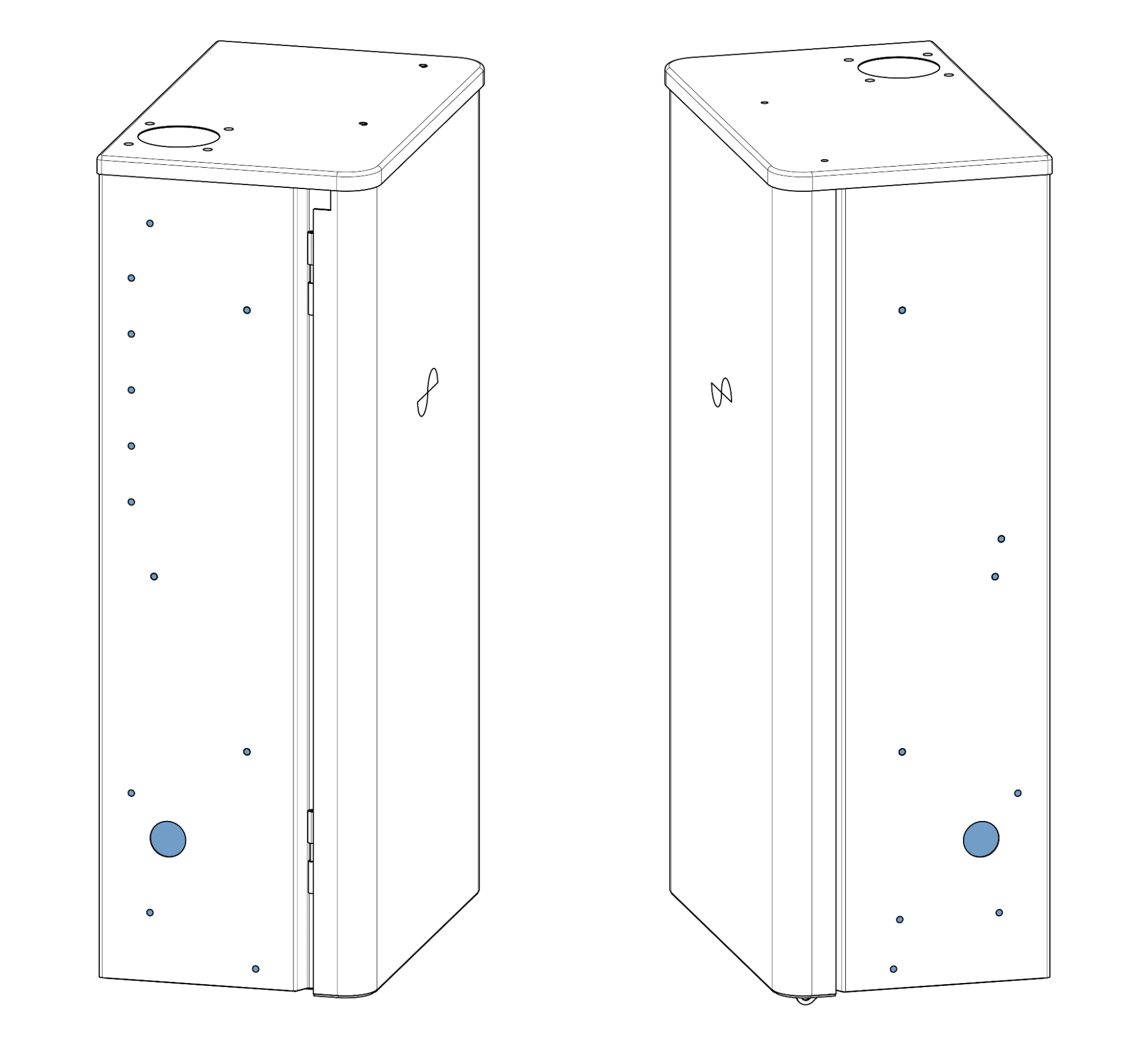

| Sides (Knockouts) | 3/4” half-shear knockouts. |
Installing Bridge
Installing Conduit
Lunar Bridge supports conduit connections to the enclosure from the top, bottom, sides, and back of the enclosure
