Wall Bracket Anchoring

2x4 Wooden Studs
MethodStud RequirementsFastener Requirements
Surface MountMin. 1 stud (center or off-center)1x fastener (min. 1/4” dia) into stud (min 2” depth)
1x fastener into wall with >=30lb anchor
Semi-Flush2 adjacent studs 14.5” apart(16” on center)4x #8 fasteners (2 per side) into studs (min 1” depth)

​
Surface Mount

1

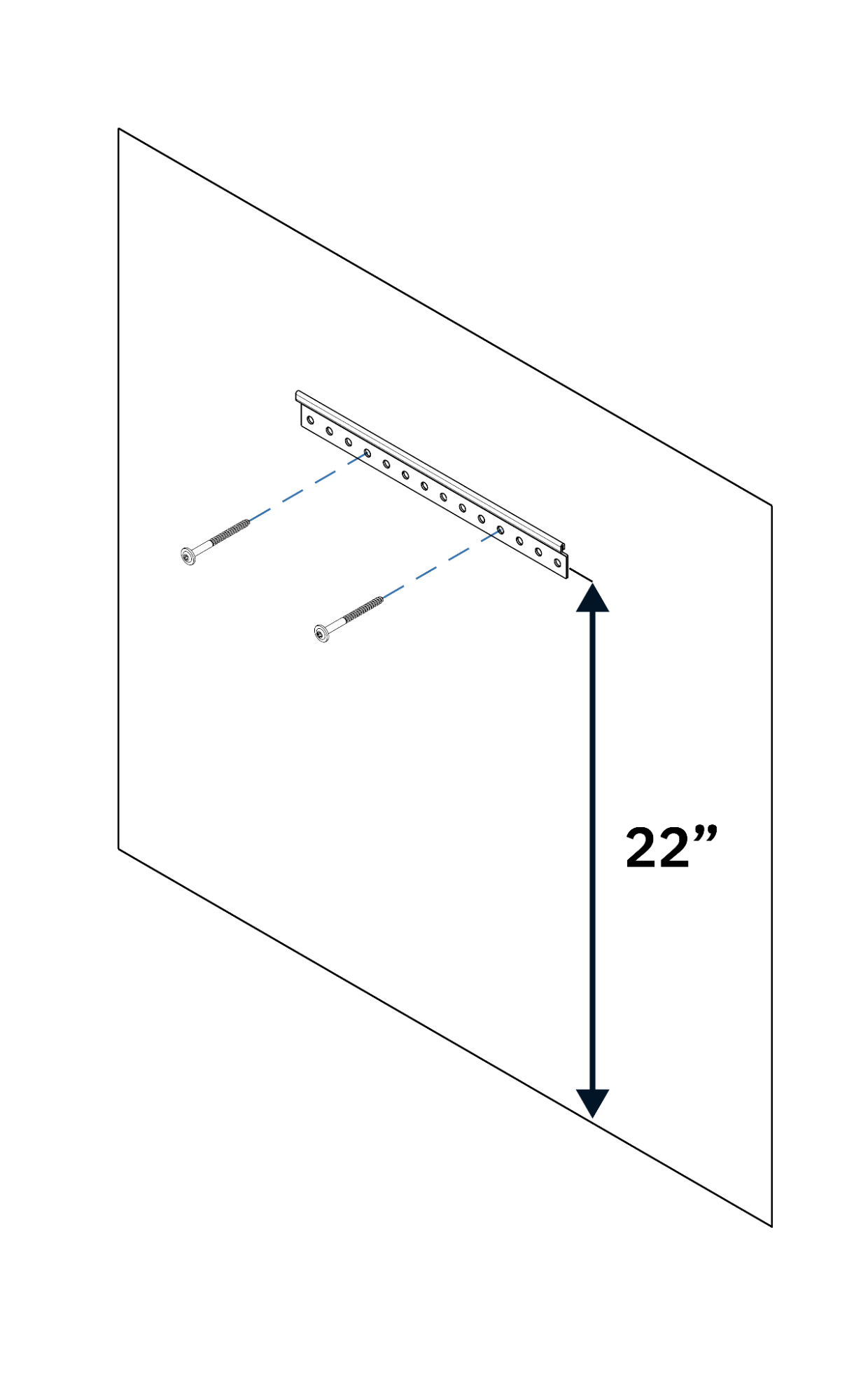

Dry fit bracket

Dry fit bracket over stud. Mark wall at bottom of Bridge, then measure up 22” to position bracket.
2

Install bracket

Install bracket using min. 2 screws (1 must be in stud).
3

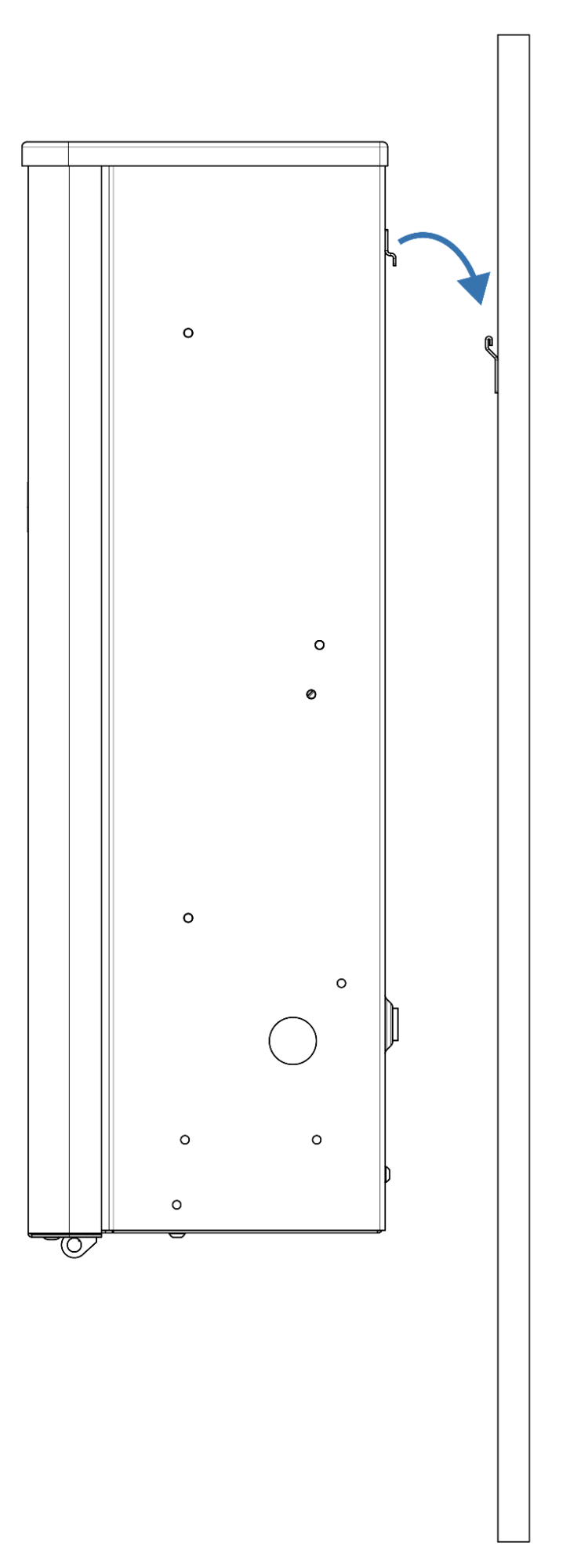

Hang enclosure

Hang enclosure on bracket. The Bridge can slide +/- 1” for alignment.
4

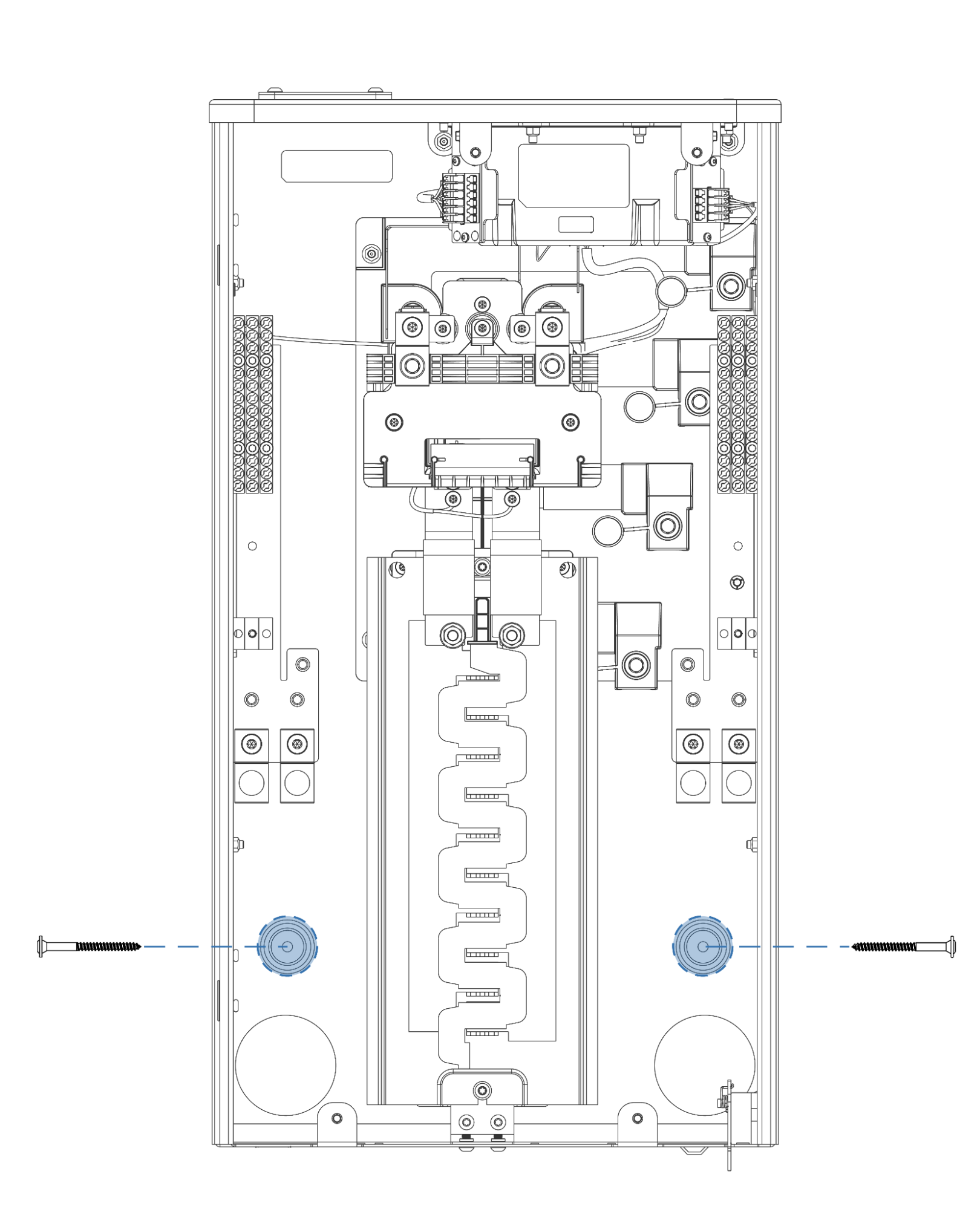

Install anchors

Secure enclosure by installing two anchors through the lower embosses.

​
Semi-Flush Mount

Follow Wall Bracket Anchoring instructions.
Enclosure must extend at least 3” from wall surface for door clearance.
Door must be capable of opening >= 90°.
